Combines Planing and Sanding Operations in One Unit.


FEATURES:

  • Oversized cutter-head provides maximum cutting stability and fine surface of cut.

  • Helical cutter-head for fast chip removal rate, low noise and creates extremely fine surface of cut.

  • Anti-kickback fingers give safety guard for operator.

  • Microcomputer provides accurate and convenient control for thickness setting.

  • Automatic control for conveyor belt tracking.

  • Conveyor table elevation is microcomputer controlled.

  • The emergency stop functions automatically in case of power failure.

  • Panel cleaning brush roller for removing dust on workpieces.

  • Air blast sanding belt cleaning device for cleaning dust on sanding belt.

  • The front door can be opened, and is supported by nitrogen cylinder for convenient running test and maintenance.

  • The front door features power off function for safety guard.

  • Two infeed rollers are provided in front of conveyor to facilitate panel infeed.

  • The machine will not start if the sanding belt is not properly tensioned or the air pressure switch shows insufficient air. Piano-type clamp.

DUST HOODS



  • Specially designed dust hoods at machine front for superior dust suction performance.

  • Vertical adjustment for helical cutter-head(Optional​)

01

AIR BLOW SANDING BELT CLEANING DEVICE



The oscillation type air blower is provided over the idler roller for effectively cleaning dust from the sanding belt.

02

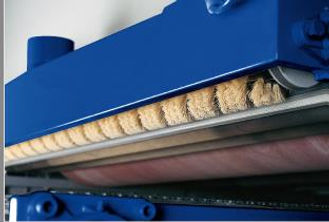

PANEL CLEANING BRUSH ROLLER



The panel cleaning brush roller is provided at outfeed end of the conveyor belt for removal of dust on workpieces. A dust hood for panel cleaning brush allows for effective dust collection.

03

04

MICRO-COMPUTER CONTROLLED THICKNESS SETTING (optional)



The conveyor table elevation can be accurately controlled by microcomputer with digital display of thickness value. The desired thickness can be preset for convenient operation.

The front door can be opened, and is supported by nitrogen cylinder for convenient running test and maintenance.

05

HIGH EFFICIENCY HELICAL CUTTERHEAD

  • The extra large cutter-head is precision manufactured from alloy steel, precision ground and dynamically balanced.

  • High accuracy helical angle assures fine surface cutting effect.

  • Fitted with throw-away, four edge tungsten carbide knife inserts.

  • Piano-type clamp.

  • Anti-kickback fingers are provided in front of cutter-head for added safety.
